Pilling & Snagging Tester

Applications:

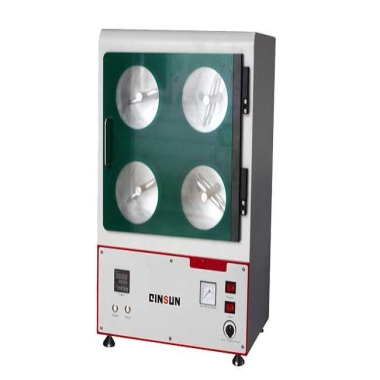

Random Tumble Pilling Tester is used to determine the pilling and fuzzing characteristics of textile fabrics.

The test specimens with dimensions of 105×105mm are put in the chambers, stainless steel impellers rotate within individually lit aluminium chambers constantly tumbling test fabrics against cork liners for a predetermined time controlled by a timer and audible alarm. Compressed air is also injected into the chamber to assist in the tumbling action. Adjustable of the pressure.

Technical Parameters:

1. 4 test chambers;

2. Equipped with a rotating stainless impellers in each test chamber;

3. Reliably Sealing of the testing chambers;

4. A digital electronic counter;

5. A buzzer to remind the end of test;

6. Equipped with pressure gauge and the timer;

7. Dimension of Drum: 146×152mm;

8. Dimension of Cork liner: 452×146×1.5mm;

9. Rods: L=121mm;

10. Rotating speed: 1200r/min;

11. Compressed air: 0.014-0.021MPa.

Pilling Resistance Tester Standards:

ASTM D3512. GB/T 4802.4. ISO 12945.3. JIS L1076-D

Easy to Use

Controls are easily accessible for testing and illuminating the sample chambers

Four-digit timer display indicates minutes: seconds and has a maximum setting of 99.59 (mm:ss)

Air pressure inside the sample chambers is displayed on instrument front
