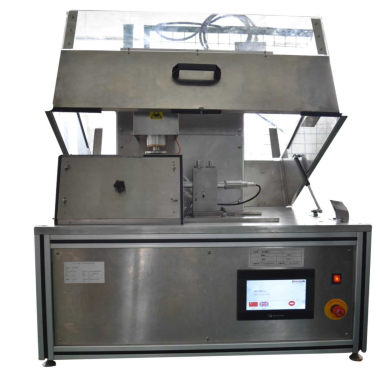

Wyzenbeek Abrasion Tester
Category：Abrasion Tester
Introduction
Applications
Oscillator Abrasion Tester is also named as Wyzenbeek Abrasion Tester, used to determine the abrasion resistance of fabrics when rubbed against a standard abradant or a wire mesh screen in a backward and forward motion over a curved surface. Particularly it’s suitable for abrasion resistance of fabrics used in the automotive and furniture industry. The instrument follows the U.S. standard with four friction heads and electronic counters to control the operating cycle.
Work Principle
The long strip sample fabric is mounted on the front and rear fixtures of the friction head with a certain tensioning force applied.The friction medium is installed on the circular grinding platform. Make the sample contact with the friction medium and apply a certain load on the sample.The friction platform moves forward and backward to abrade the sample.After a certain number of friction, assess the change of sample’s fracture strength.
Features
1. Modern efficacy design.
2. The suction device is connected to an auxiliary vacuum cleaner.
3. Sealed gear actuator ensures quiet operation.
Accessories and Consumables
Rubber pad (8 / bag)
Metal mesh – Wyzenbeek (4 / bags)
Standard abradiant #10 cotton canvas – 60 inch x 5 yards
Fine sandpaper for cleaning rubber pad
Nylon brush, soft fur
Technical Parameters
| Parameter | Value |
|---|---|
| Abrasion table | Cambered surface -R100mm, Length-400mm |
| Test stroke | 76±2 mm |
| Abrasion velocity | 90±1 /min (double friction) |
| Tension adjusting weights | 340g (The force applied to the sample can be adjusted from 4.45 to 26.7 N) |
| Load weight | 150g (adjusted from 4.45 to 15.575N) |
| Tension of sample | 17.8N (adjustable) |
| Sample loading | 13.4N (adjustable) |
| Sponge rubber pressure pad | 50×50mm (±1mm) |
| Instrument material | Stainless steel |
| Surface treatment | Paint spraying |
| Sample size | 245×73 mm |
| Dimension | 50L× 50W × 60H cm |
| Weight | 75kg |
| Power supply | 220V, 50Hz, 0.05A |
